Single Use Bioreactor
Over 25 years production experience
Your Reliable Chinese Single Use Bioreactor Supplier : Bailun（BLBIO）
Bailun Biotechnology is a leading single use bioreactor manufacturer in China. Products cover all kinds of bioreactors in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc. Can produce bioreactor of 0.1L-1000KL volume and technical services, and provide intelligent and personalized comprehensive solutions for bioreactors process. Bailun has a large number of experienced fermentation process, biochemical equipment and chemical technical engineers, many famous experts and scholars as the company’s technical consultants, Bailun forever pursuits to create value for customers, and adhere to customer-centric is the core value of Bailun.
Introduction to Single use Bioreactor

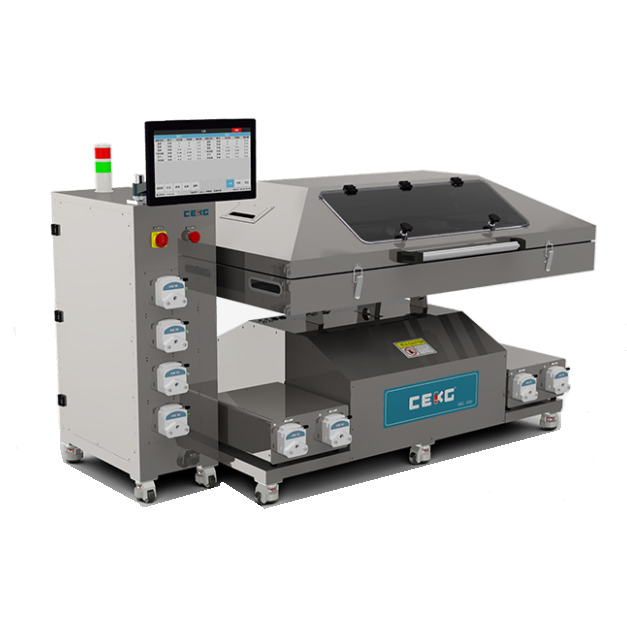

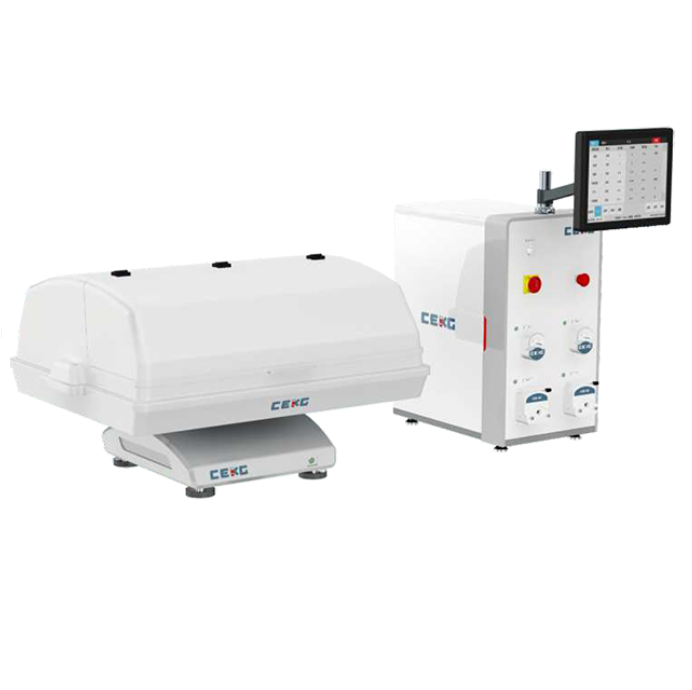

SKC600 single use bioreactor is developed for cell culture. It uses a rocker platform to place single-use suspension cell culture bags or single-use fabric carrier culture bags(produced by ourselves). Also It can control the rocker speed, tilt angle, gas flow, temperature, pH, DO, concentration of CO2 and 02 and weight.
SKC600 single use bioreactor supports the replacement of trays of different sizes. 10L trays (2L, 5L, 10L culture bags), 20L trays (20L culture bags) and 50L trays (50L culture bags) optional.
Single use Bioreactor Feature
1.Tray replaced rapidly.10L trays, 20L trays, 50L trays replaced easily
2.Suspension culture and adherent culture.Suitable for different cell culture bags, e.g. suspension cell culture and adherent cell culture. Continuous perfusion culture for adherent cell is achieved easily with our patented fabric carrier bag
3.Batch culture and perfusion culture of suspension cells.Perfusion membrane cell culture bag is used for the perfusion culture and high-density culture of suspension cells and the N-lscale-up
4.Adherent cell trypsinization, transfer and scale up.Fabric carrier cell culture bags can achieve amount cell culture adherent, and then trypsinizate and prepare amount adherent seed cells into next process
Know More About Single use Bioreactor
Parameter
Certificates
Factory
Parameter
| Tray size | 10L | 20L | 50L | ||
| Total volume (suspension culture) | 2L | 5L | 10L | 20L | 50L |
| Total volume (adherent culture) | 2L | 5L | 10L | 20L | 50L |
| Max. working volume | IL | 2.5L | 5L | 10L | 25L |
| Control system | Siemens PLC, 15-inch color touch screen, Ethernet interface, USB interface | ||||
| Temperature control | Heating plate, PID automatic control, accuracy: ±0.2°C; Temperature control range: 5-40°C above | ||||
| Rocker speed | l-40rpm | ||||
| Tilt angle | 1-12° | ||||
| Gas※ | 3 thermal mass flow controllers (Air/O2/CO2), 1 thermal mass flow controller with 3 gas mixer optional | ||||
| Exhaust ※ | Exhaust condenser, exhaust filter heater optional | ||||
| Exhaust analysis | O2(0-50%), CO2 (0-15%) | ||||
| Pressure detection | Range:-100mbar——l00mbar; Stop air intake when it is exceeded. | ||||
| pH | Single-use pH probe, control range: 6-8, accuracy:±0.05pH; PID control; cascaded by gas flow, peristaltic pump, etc. | ||||
| DO | Single-use DO probe, control range: 0-100%, accuracy:±3%; PID control; cascaded by rocker speed, MFC, etc. | ||||
| Pumps※ | 4fixed-speed peristaltic pumps,customized feeding/acid feeding/alkali feeding/ discharging etc. 25RPM or 100RPM variable speed optional | ||||
| Load cell | Load: 0-50kg, accuracy: ± (0.050 +1% loading sampling) kg; cascaded by pumps | ||||
| Utilities | Air/O2/CO2, pressure: 15-20PSIG | ||||
| Signal interface | Optional | ||||
| Power supply | AC220V,50/60HZ, 10A | ||||
Certificates
Factory
The following picture shows the production workshop of Bailun.
